DTII DTII(A)
DTII, DTII (a) and TD75 fixed belt conveyors are our company's professional products. They have the advantages of large conveying capacity, simple structure, convenient maintenance, low cost and strong universality. They can be widely used in metallurgy, mining, coal, port, power station, building materials, food, chemical industry, light industry, petroleum and other industries. According to the requirements of the conveying process, it can be transported by a single machine, multiple machines or form a horizontal or inclined conveying system with other conveyors. It can transport various bulk materials and finished articles with loose density of 0.5 ~ 2.5t/m.
The working environment temperature of fixed belt conveyor is generally - 25 ~ + 40 ℃. For the belt conveyor working in special environment, if it is required to have conditions such as heat resistance, cold resistance, waterproof, anti riot, anti-corrosion and flame retardant, corresponding protective measures can be taken separately.
TD75

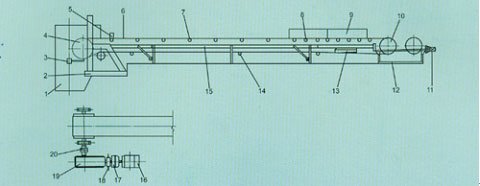

Basic layout
Maximum conveying capacity of TD75 and tdii belt conveyors
Drag roller type bearing | Conveying speed | Belt conveying width B(mm) | |||||
500 | 650 | 800 | 1000 | 1200 | 1400 | ||
Conveying capacity(t/h) | |||||||
Grooved idler | 0.8 | 78 | 130 | - | - | - | - |
1.0 | 97 | 164 | 278 | 435 | 655 | 891 | |
1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
2.5 | 232 | 391 | 664 | 1033 | 1556 | 2118 | |
3.15 | - | - | 824 | 1233 | 1858 | 2528 | |
4.0 | - | - | - |
| 2202 | 2996 | |
Parallel idler | 0.8 | 41 | 67 | 118 | - | - | - |
1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
1.6 | 84 | 142 | 236 | 368 | 558 | 753 | |
2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
2.5 | 125 | 211 | 350 | 546 | 821 | 1117 |
